4P - TFH

An optimal solution for indirect heating needs:

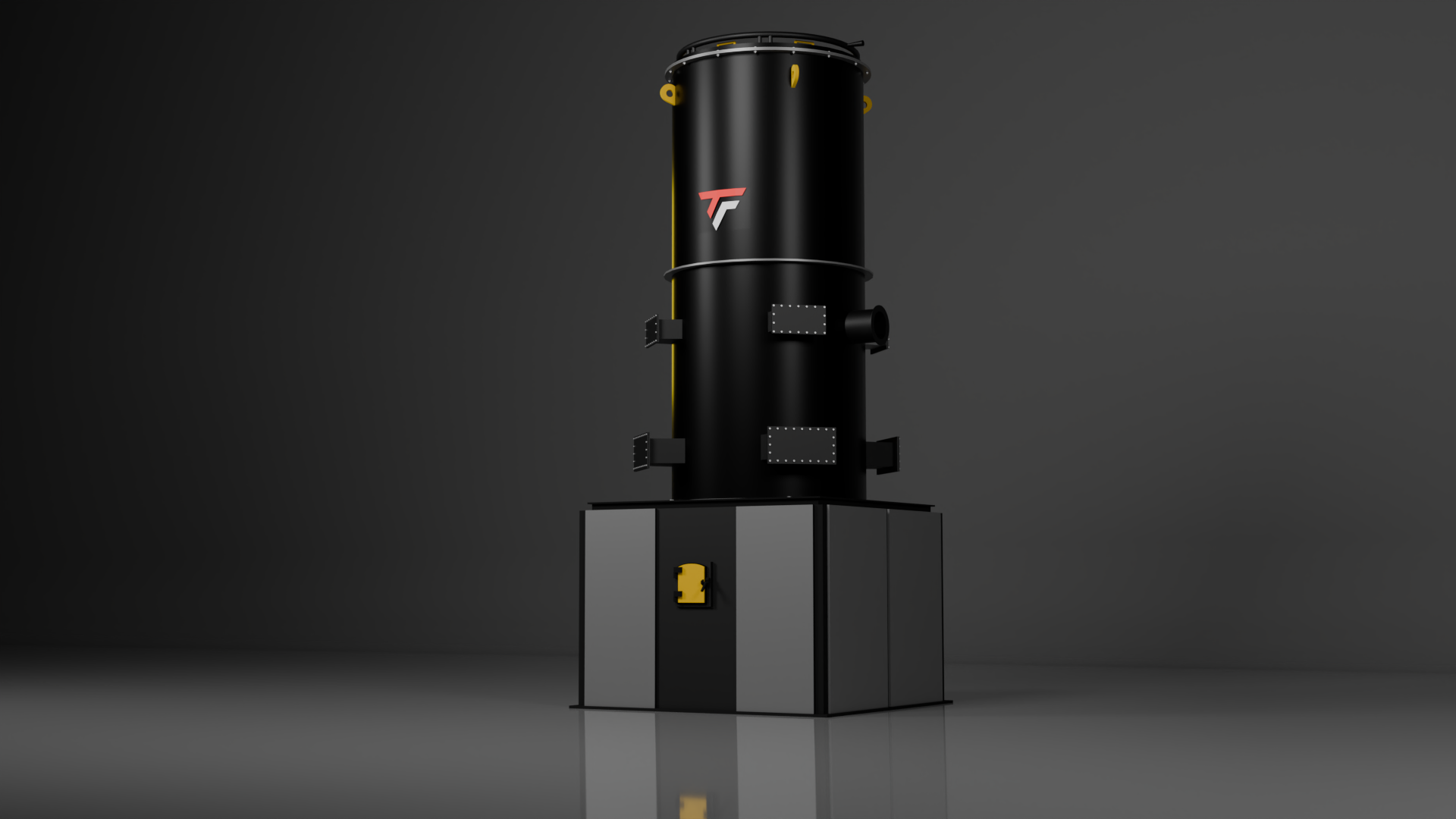

The NEW Vertical 4-Pass Thermic Fluid Heater is the perfect answer to the ever changing energy scenario. The vertical design offers compactness, multi-fuel flexibility and is ideal for heating applications in textile, plywood, chemicals, food, edible oil, rubber, leather and all other industries requiring indirect heating.

Product Offering:
  • Vertical 4-Pass closed loop thermal oil heating
  • Capacity 4,00,000 to 30,00,000 Kcal/hr
  • Operating temperature -280°C
  • Fuel - Coal, lignite, sawdust, wood logs, wood chips, paddy husk, Bio-Coal.
Options Available.

• Operating temperature - 300°C.
• Combination fuel firing.
• Coal, lignite, sawdust, wood logs, wood chips, paddy husk, Bio-Coal.
• Screw and rotary feeder.
• Capacities up to 4 million kCal/hr.
• Complete boi ler house and accessories.
• Separate deerator & expansion tanks with units.

Controls and Safety.

• Low thermic fluid flow cut-off
• Precise thermic fluid temperature control
• High thermic fluid outlet temperature cut-off
• Low level cut-off in deerator tank
• High stack temperature cut-off
• Safety valve for protection against high pressure

Engineered for Maximum Benefits

• Air pre-heater improves combustion efficiency and ensures lower power consumption of ID fan.
• Precise thermic fluid temperature control.
• Low flow alarm to prevent coil tube overheating and choking.
• Safety relief valve to prevent high pressure conditions.
• Level indicator and float actuated level switch to signal drop in thermic fluid levels.
• Adequate furnace volume and heat transfer surface to ensure higher thermal efficiency.
• Modular assembly to facilitate quick and easy installation.
• Dedicated DG set to keep thermic fluid in circulation during power failure.
